Automatic fire suppression system for electrical panels and commercial applications

Our electrical panels are built to the highest quality - and your fire protection should be too. An automatic fire suppression system protects your critical installations from fire and minimizes costly downtime. With the Reacton Fire Suppression System, you get a certified solution that reacts instantly to fire inside the electrical panel - without any human intervention.

At SystemTeknik, we provide professional fire protection solutions for commercial and industrial applications, with a strong focus on electrical panels, server rooms, data centers, and production equipment. We support you all the way - from installation to ongoing service and maintenance of your fire suppression system.

Questions?

Call or write us.

Want top-level safety for your electrical panel? Then reach out to our Market Manager, Jesper Storm Simonsen. He’s ready to have a conversation about your specific needs.

Call: +45 6646 9718

Email: JSS@systemteknik.dk

Contact

How does automatic fire suppression work?

An automatic fire suppression system is designed to detect and combat a fire before it spreads. Fire detection takes place via pneumatic linear detection or electrical detectors that run through the protected area and activate at temperatures of around 180 degrees.

Activation process in the event of fire

  • Automatic fire detection 24/7
    The detection tube continuously monitors the temperature inside the electrical panel or the protected area. In the event of abnormal heat development, the system is activated automatically.
  • Immediate suppression
    When the fire detection is triggered, the tube bursts and activates a rapid discharge valve. The extinguishing agent is released immediately.
  • Total fire suppression
     The released extinguishing agent absorbs heat and effectively interrupts the combustion process. The fire is extinguished before it can spread to other parts of the installation.
  • No cleanup required afterwards
     When clean agent extinguishing agents are used, no residue is left behind. The electrical panel remains dry, and operations can be resumed quickly.

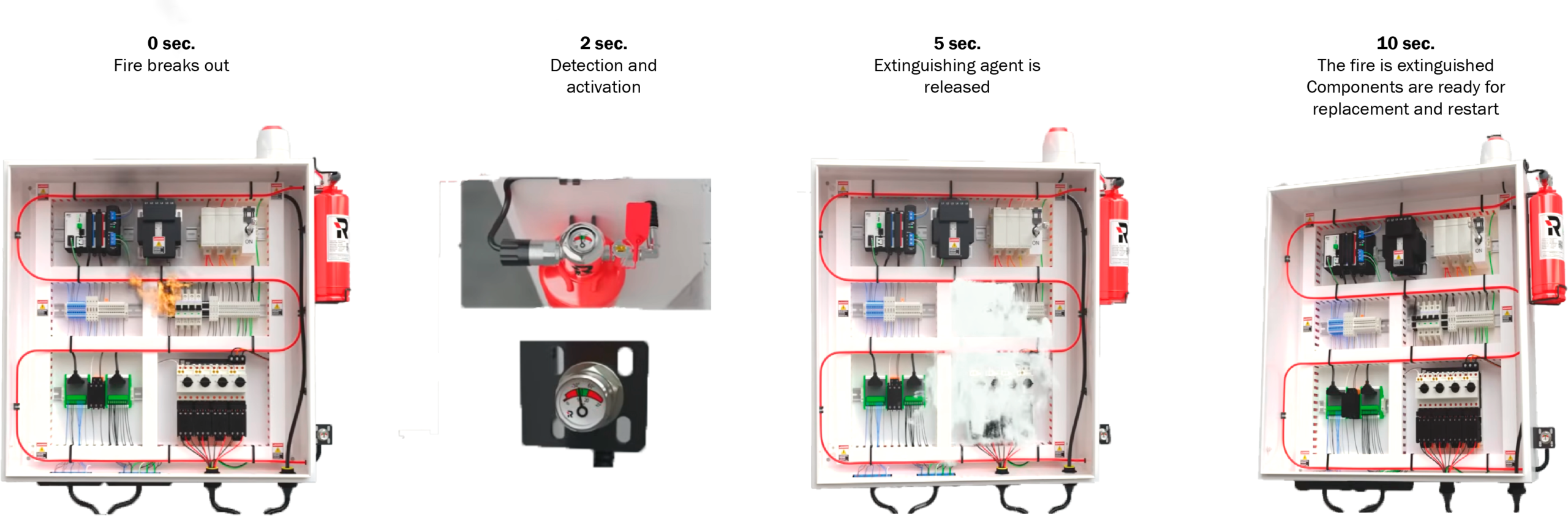

10 seconds that saves your electrical panel with Reacton

Fire protection of electrical panels – local object suppression

Fire in electrical panels is one of the most common causes of electrical fires in commercial buildings, according to the Danish Institute of Fire and Security Technology. A fire in electrical installations can occur suddenly due to overload, short circuits, or defective components. That is why fire protection of electrical panels is crucial to safeguarding your business.

In the event of a fire in an electrical panel, the consequences can be extensive: production downtime, damaged equipment, and in the worst case, personal injury. With local object suppression, you minimize the risk and ensure continuity in your operations.

Why choose local fire suppression for electrical panels?

  • Fast response – The fire is detected and extinguished before it spreads
  • Minimal damage – Only the affected components are impacted
  • Minimal downtime – The system protects without affecting daily operations
  • Object protection – Safeguards the specific installation rather than the entire building

Automatic fire suppression for electrical panels

Our Reacton system is specifically designed for fire suppression in electrical panels. The system is compact, self-contained, and requires no external power supply. This means the protection is active 24/7—even in the event of a power outage.

The system is ideal for:

Distribution panels

Control panel

UL-panels

Specialized panels

UPS systems

Fire suppression for server rooms and data centers

IT infrastructure is the backbone of many modern businesses. Fire suppression for electrical cabinets in server rooms and data centers requires special attention, as conventional extinguishing agents such as water can cause as much damage as the fire itself.

Fire prevention in IT environments

In addition to automatic fire suppression, we recommend a holistic approach to fire prevention:
  • Regular inspection of cables and installations
  • Monitoring of temperature and humidity
  • Early fire detection with sensitive sensors
  • Integrated alarm systems with beacon sounders for rapid notification

Fire protection without water damage

In server rooms, clean agent fire suppression is used—gas-based extinguishing agents that suppress the fire without leaving residue or damaging electrical cabinets.
This is crucial for:
  • Server rooms
  • Data centre
  • Telecom installations
A fire suppression system for server rooms must respond quickly and effectively. Our automatic fire suppression system is specifically designed for these environments, where even a few seconds of fire can lead to massive losses due to downtime.

Fire suppression for machinery and production equipment

CNC machines and machining equipment

Fire suppression for CNC machines is critical, as these often operate with oil, coolant, and metals that can ignite. A local fire suppression system installed directly inside the machine ensures immediate suppression.

Generators and power systems

Fire suppression for generators protects against fires caused by electrical faults. This is particularly relevant for:
  • Emergency generators
  • Fire suppression for wind turbines (nacelles and transformers)
  • Fire suppression for BESS systems (battery energy storage)

UPS systems

Fire suppression for UPS systems is essential, as they contain batteries that, in the event of a fault, can cause thermal runaway and fire. An automatic system provides round-the-clock protection.

Other production equipment

  • Hydraulic systems
  • Compressors
  • Transformers
  • Fire suppression for machinery in general

Extinguishing agents – Clean Agent technology

The choice of extinguishing agent is crucial for effective fire suppression without damaging the equipment you are trying to protect. We work with several types of clean agent extinguishing agents as an alternative to inert gas systems:

FM-200

FM-200 is one of the most widely used extinguishing agents for fire protection of electronic equipment. It suppresses fire quickly by interrupting the chemical reaction in the combustion process. FM-200 leaves no residue and is safe for electronic equipment.

Advantages of FM-200:
  • Fast suppression (under 10 seconds)
  • No residue after activation
  • Safe for people at normal concentrations
  • Ideal for server rooms and electrical panels

Reacton 1230

Novec 1230 is an environmentally friendly extinguishing agent with a very low global warming potential. It is ideal for companies focused on sustainability.

Advantages of Reacton 1230:
  • Environmentally friendly alternative
  • No ozone depletion
  • Evaporates quickly without leaving residue
  • Approved for use in occupied areas

Complements your existing fire protection system

An important point: Our automatic fire suppression system is designed to complement—not replace—your existing fire alarm system (Automatic Fire Alarm System, AFA) or ARS system.

This is how the systems work together

  • The fire alarm system (AFA) monitors the entire building and triggers an alarm in the event of smoke development.
  • The Reacton system protects the electrical panels locally and suppresses the fire at its source.

Integration with existing systems

Our fire suppression system can be integrated with:

  • Existing fire alarm systems (AFA)
  • Building management systems (BMS)
  • Monitoring systems

In addition, you can choose to include a beacon sounder alarm as part of your Reacton system.

Upon activation, the system can send a signal to your central fire alarm system, ensuring that all relevant parties are notified immediately.

Certified fire suppression system

Service and maintenance of fire suppression systems

What does fire suppression system service include?

  • Visual inspection of changes that could tamper with or reduce the system’s effectiveness
  • The ball valve in the cylinder system and the release mechanisms
  • Pressure gauges on the cylinder and EOL (End of Line) unit
  • Detection tube and sensors
  • Extinguishing agent cylinders (weight and pressure)
  • Electrical connections
  • Alarms and indicator lights

A fire suppression system is only effective if it is properly maintained. We offer complete servicing of fire suppression systems to ensure that your system is always ready.

Service agreement for fire suppression with Reacton Fire Suppression

With a fire suppression service agreement, you receive:

  • Annual inspection of the fire suppression system – Thorough inspection of all components
  • Maintenance of the fire suppression system – Replacement of worn parts
  • Documentation – Logbook and service reports for insurance and authorities
  • Priority support – Fast assistance if an incident occurs

Fast service after activation

If your system is activated, we provide rapid service. We replace the used cylinder and inspect and repair any damaged components, ensuring that your electrical panel is protected and back in operation as quickly as possible.

Benefits of a Reacton fire suppression system

No human intervention required

1
The system is fully automatic. It detects fire and activates suppression without the need for manual intervention. This is critical, as fires can also occur outside working hours.

Self-contained system

2
The Reacton system is a self-contained fire suppression system that does not depend on the building’s power supply or other systems. It operates independently 24/7.

No electricity required

3
As the system does not require an external power supply, it remains active even during power outages—precisely when the risk of fire in electrical installations may be at its highest.

Minimal downtime

4
By stopping the fire at its source before it spreads, damage and downtime are minimized. After activation, no cleanup is required—operations can be resumed quickly.

Zero clean-up

5
Clean agent extinguishing agents leave no residue. No foam, no powder, no water damage. Your electrical panel remains dry and fully functional.

Safe and non-toxic

6
The extinguishing agents used are non-toxic and safe for people. They can be used safely in occupied areas.

Industries we serve

💾

Data centre

Fire suppression for data centers requires rapid response and extinguishing agents that do not damage electronic equipment. We deliver complete solutions for the fire protection of server rooms and IT infrastructure.
🏭

Industry and manufacturing

From CNC machines to generators - we provide fire suppression for machinery and production equipment in all types of manufacturing environments.
💡

Energy sector

Wind turbines, solar power plants, BESS systems, and transformer stations all require reliable fire protection. Our systems are designed for these demanding environments.
💻

OEM solutions

We supply fire suppression systems to machine builders and OEM manufacturers who want to integrate fire protection directly into their products.
🔌

Electrical infrastructure

From distribution boards to transformer stations—we protect the critical electrical infrastructure that keeps society running.

FAQ

An automatic fire extinguisher (or automatic fire suppression system) activates itself in the event of a fire without human intervention. A standard portable fire extinguisher requires a person to detect the fire and activate the extinguisher manually.

Yes, the Reacton system is designed to complement your existing fire alarm system (AFA). It provides local protection and rapid suppression, while the fire alarm system ensures building-wide monitoring and alarm notification.

We recommend having the fire suppression system inspected once a year. With a service agreement, we ensure that your system is always in optimal condition.

Yes, we exclusively use clean agent extinguishing agents such as FM-200 and Novec 1230, which are safe for electronic equipment and leave no residue.

After activation, you contact us and we provide rapid service. We replace the used cylinder, any damaged components, inspect the system, and ensure it is ready for operation again.

Contact us about automatic fire suppression

Are you looking for a calm and well-considered solution that protects both your electrical panels and the people working around them?

At SystemTeknik, we help companies create peace of mind around their critical installations through automatic fire suppression systems that operate discreetly in the background—ready if an incident should occur one day.

We are happy to offer a non-binding dialogue, where we look at your needs together and find a solution that fits your daily operations, your installations, and your workflow. No pressure—just solid advice and professional guidance.
